Spanners
PREV 1 2 3 4 NEXT

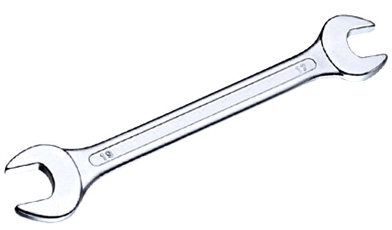

Double Open End Recessed Panel (Chrome Vanadium Steel / Carbon Steel)
Size mm Size SAE Length mm Weight gms
6 x 7   122 25
  1/4 x 5/16 122 25
8 x 9 5/16 x 3/8 140 35
8 x 10 5/16 x 13/32 140 35
10 x 11 3/8 x 7/16 157 50
12 x 13 7/16 x 1/2 172 70
14 x 15 ½ x 9/16 190 95
16 x 17 9/16 x 5/8 190 95
17 x 19 19/32 x 11/16 205 115
  5/8 x 3/4 222 180
18 x 19   222 180
19 x 22 3/4 x 7/8 236 210
20 x 22 25/32 x 7/8 236 210
  13/16 x 7/8 236 210
21 x 23 15/16 x 1 250 230
24 x 26   266 300
24 x 27   266 300
25 x 28 1 x 1.1/8 280 370
27 x 32 1.1/16 x 1.1/4 302 450
30 x 32   302 450

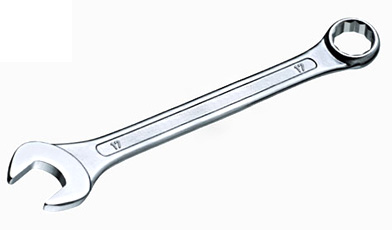

Combination spanner Recessed Panel (Chrome vanadium Steel / Carbon Steel)
Size mm Size SAE Length mm Weight gms
6 1/4 100 20
7   110 22
8 5/16 115 35
9   125 30
10 3/8 135 40
11 7/16 145 45
12   155 50
13 1/2 165 60
14 9/16 175 75
15   185 90
16 5/8 195 100
17 11/16 210 120
18   220 120
19 3/4 230 160
20   240 170
21 13/16 245 185
22 7/8 250 215
23   260 255
24 15/16 270 285
25 1 280 345
26   290 345
27 1.1/16 300 425
28 1.1/8 310 460
29   310 460
30   330 540
32 1.1/4 350 560

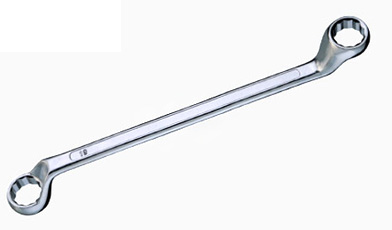

Bi-Hexagonal Deep offset Ring Spanner Recessed Panel (Chrome Vanadium Steel / Carbon Steel)
Size mm Size SAE Length mm Weight gms
6 x 7 1/4 x 5/16 166 55
8 x 9 5/16 x 3/8 182 60
10 x 11 3/8 x 7/16 192 80
12 x 13   212 110
14 x 15 ½ x 9/16 222 145
  9/16 x 5/8 222 145
16 x 17 5/8 x 11/16 242 190
18 x 19 3/4 x 25/32 262 235
20 x 22 3/4 x 7/8 288 285
  13/16 x 7/8 288 285
21 x 23   302 350
24 x 26 15/16 x 1 322 400
24 x 27   322 400
25 x 28 1 x 1.1/8 342 455
27 x 32 1.1/16 x 11.1/4 362 630
30 x 32   362 630
