Spanners

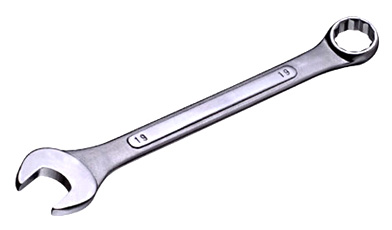

Combination Spanner Raised Panel
Size mm Size SAE Length mm Weight gms
6 1/4 95 20
7   95 20
8 100 30
  5/16 100 30
9 11/32 108 35
  3/8 115 35
10 7/16 115 35
11 130 45
12 137 60
  1/2 145 60
13   145 80
14 9/16 165 115
15 19/32 176 115
17 5/8 185 130
  11/16 205 170
18 3/4 218 170
19 13/16 230 170
  7/8 290 285
22 290 285
24 15/16 315 345
26 1 335 380
27 1.1/16 362 560
28 1.1/8 372 580
30   382 580
32 1.1/4 392 690

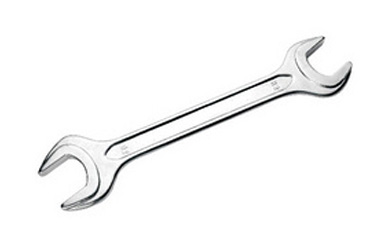

Double Open ended spanner DIN 895
Size mm
6 x 7 25 x 28
8 x 9 27 x 32
10 x 11 30 x 32
12 x 13 30 x 34
13 x 14 30 x 36
16 x 17 30 x 36
17 x 19 32 x 36
18 x 19 36 x 41
19 x 22 41 x 46
20 x 22 46 x 50
21 x 23 50 x 55
24 x 27 55 x 60
Single open end Spanner DIN 894
Size mm
6 24
7 25
8 27
9 30
10 32
11 36
12 38
13 41
14 46
15 50
16 55
17 60
19 65
20 70
21 75
22 80
23 85
